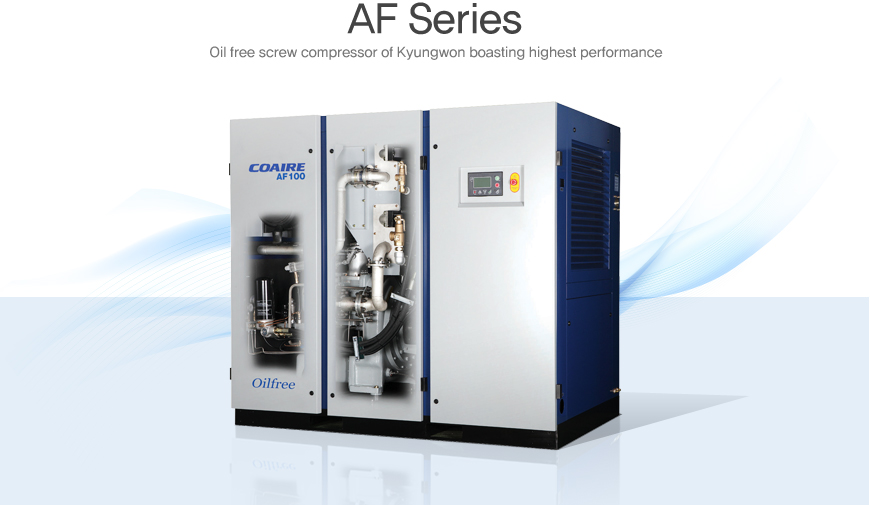

Oil Free Screw
오일프리스크류- AF SERIES

Compressor
Type		 Max.Working Pressure Capacity Motor Power Noise Dimension(LxWxH) Weight Air Outlet
kgf/㎠G psig ㎥/min cfm kw HP dB(A) mm kg A(B)
AF75 7.0
8.5
9.5		 100
120
135		 9.0
7.8
7.8		 317
277
276 		55 75 76 2300x1570x2090 2600 50(2)
AF100 7.0
8.5
9.5		 100
120
135		 12.2
10.6
10.6		 431
375
374		 75 100 78 2300x1570x2090 2800 50(2)
AF125 7.0
8.5
9.5		 100
120
135		 15.9
13.6
13.5		 562
479
477		 93 125 82 2700x1660x2350 3200 80(3)
AF150 7.0
8.5
9.5		 100
120
135		 19.5
16.0
16.0		 688
566
565 		110 150 83 2700x1660x2350 3250 80(3)
AF175 7.0
8.5
9.5		 100
120
135		 21.6
19.4
19.4		 764
686
685 		132 175 83 2700x1660x2350 3300 80(3)
AF200 7.0
8.5
9.5		 100
120
135		 26.0
25.9
22.9		 917
915
810 		160 215 83 2700x1660x2350 3350 80(3)
AF250 7.0※
8.5※
9.5※		 100
120
135		 32.8
29.4
29.3		 1,158
1,038
1,036 		190 250 84 3320x2150x2400 4250 100(4)
AF300 7.0
8.5
9.5		 100
120
135		 41.9
35.1
35.1		 1,479
1,241
1,239 		220 300 84 3320x2150x2400 4400 100(4)
AF350 7.0
8.5
9.5		 100
120
135		 45.7
41.8
41.8
 1,613
1,478
1,476 		260 350 85 3320x2150x2400 4650 100(4)
AF400 7.0
8.5
9.5		 100
120
135		 50.3
45.6
45.6		 1,775
1,611
1,609 		300 400 85 3320x2150x2400 4800 100(4)
  • Specifications are subject to change without prior notice due to remodeling of products, etc.

Compressor
Type		 Max.Working Pressure Capacity Motor Power Noise Dimension(LxWxH) Weight Air Outlet
kgf/㎠G psig ㎥/min cfm kw HP dB(A) mm kg A(B)
AF50V 7.0
8.5
9.5		 100
120
135		 2~5.4
2~4.9
2~4.6		 71~191
71~173
71~162		 37 50 73 1900x1180X1960 1800 40(1 1/2)
AF75V 7.0
8.5
9.5		 100
120
135		 4.5~9.0
4.5~7.8
4.2~7.8		 159~317
159~277
148~276		 55 75 76 2300x1570x2090 2650 50(2)
AF100V 7.0
8.5
9.5		 100
120
135		 7~12.2
6~10.6
6~10.6		 247~431
212~375
212~374		 75 100 78 2300x1570x2090 2850 50(2)
AF125V 7.0
8.5
9.5		 100
120
135		 9~15.9
8.5~13.6
8.2~13.5		 318~562
300~479
290~477		 93 125 82 2700x1660x2350 3300 80(3)
AF150V 7.0
8.5
9.5		 100
120
135		 12~19.5
11~16.0
11~16.0		 424~688
388~566
388~565		 110 150 83 2700x1660x2350 3370 80(3)
AF175V 7.0
8.5
9.5		 100
120
135		 14~21.6
13~19.4
13~19.4		 494~764
459~686
459~685		 132 175 83 2700x1660x2350 3460 80(3)
AF200V 7.0
8.5
9.5		 100
120
135		 16~26.0
15~25.9
15~22.9		 565~917
530~915
530~810		 160 215 83 2700x1660x2350 3500 80(3)
AF250V 7.0
8.5
9.5		 100
120
135		 18~32.8
17~29.4
16~29.3		 636~1158
600~1038
565~1036		 190 250 84 3850x2150x2400 4430 100(4)
AF300V 7.0
8.5
9.5		 100
120
135		 22~41.9
20~35.1
20~35.1		 777~1479
706~1241
706~1239
 220 300 84 3850x2150x2400 4580 100(4)
AF350V 7.0
8.5
9.5		 100
120
135		 26~45.7
25~41.8
24~41.8
 918~1613
883~1478
848~1476		 260 350 85 3850x2150x2400 4840 100(4)
AF400V 7.0
8.5
9.5		 100
120
135		 30~50.3
28~45.6
27~45.6		 1059~1775
989~1611
953~1609
 300 400 85 3850x2150x2400 5010 100(4)
  • Specifications are subject to change without prior notice due to remodeling of products, etc.
