Condensate Drain Valve
응축수 배출용드레인밸브

Model CONNECTION Electrical Power
(ØxVxHz)
Maximum
Temperature
Operation
Pressure
Timer Intercal/
Drain Cycle

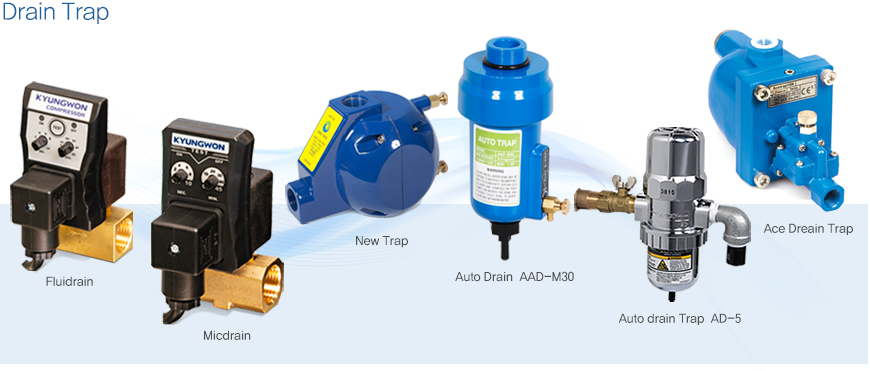

Fluidrain G1/2" 1ph 230VAC 50-60Hz Max. 90℃ 16 bar 0.5-10 sec. (ON)
0.5-45min (OFF)
MICdrain G1/2" 1ph 230VAC 50-60Hz Max. 90℃ 16 bar 0.5-10 sec. (ON)
0.5-45min (OFF)
Model Max. Pressure Connection
Fluidrain 16 16 Kgf/㎠ PT1/2"
Fluidrain 80 80 Kgf/㎠ PT1/4"
Fluidrain 250 250 Kgf/㎠ PT1/4"
  • Fluidrain: high class model (product that obtained certifications in different nations around the world) / Micdrain: diffusion model

Model Pressure Connection
AAD-15A 1.5~13kgf/㎠ PT 1/2"
AAD-M30 1.5~13kgf/㎠ PT 1/2"
NEW TRAP 1.5~13kgf/㎠ M30
AD-5 2.9~9.8kgf/㎠ RC 1/2"
Acedrain 15 3~9.9kgf/㎠ PT 1/2"

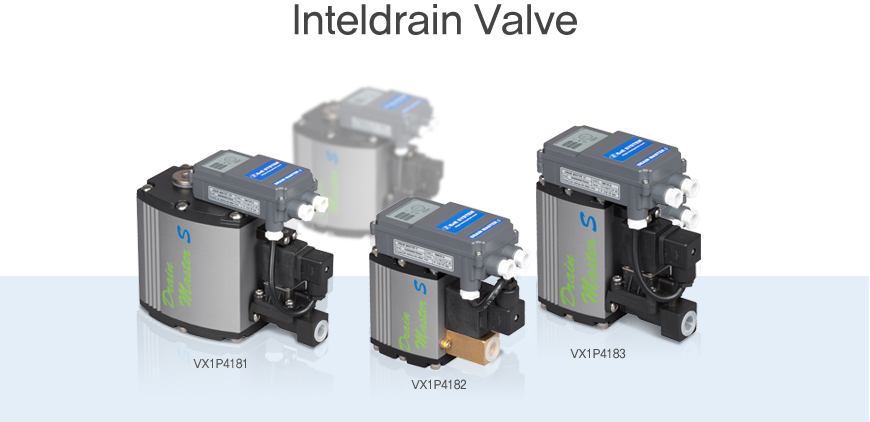

Model DRAIN MASTER S DRAIN MASTER HP
DM-5N DM-15 DM-50 DM-150 DM-500 DM-1500 DM-15HP DM-50HP DM-150HP
Compressor Capacity(㎥/min) 5 15 50 150 500 1500 15 50 150
Dryer Capacity(㎥/min) 10 30 100 300 1000 3000 30 100 300
Filter Capacity(㎥/min) 50 150 500 1500 - - 150 500 -
Operating Pressure (bar) 0.8 ~ 16 1.2 ~ 60
Voltage AC (bar) Free Voltage 90 ~ 260, 24/48Vac, 24/48Vdc
Application Oil Injection, Oil Free
Temperature (℃) +1 ~ 80
Inlet (inch) 1/2"x 2 3/4"x 3 3/4"x 2.1"x 1 1/2"x 2 3/4"x 3
Outlet (inch) 3/8" 1/2" 3/8"
Housing Material Aluminium, Hardcoated
Weight (kg) 1.30 1.65 2.20 3.30 5.30 7.30 1.95 2.50 4.05
  • Auto temperature adjustment device (heater unit) must be installed in freezing region.
