Refrigerated Air Dryer

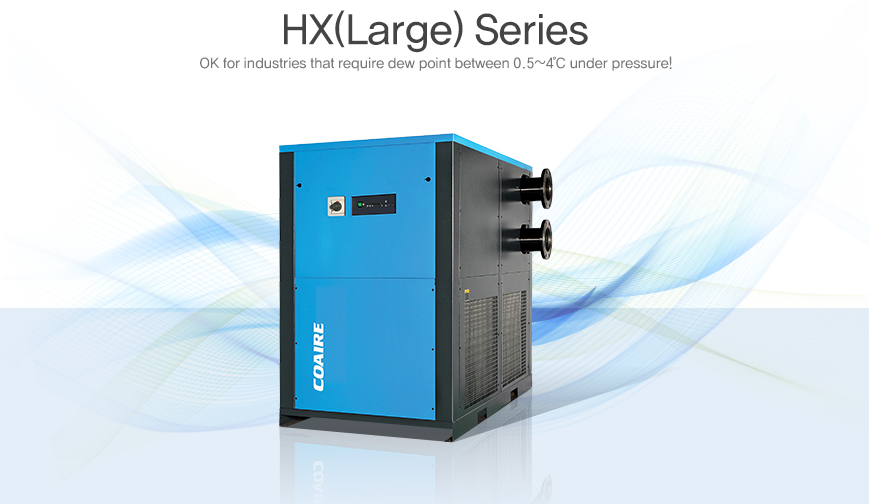

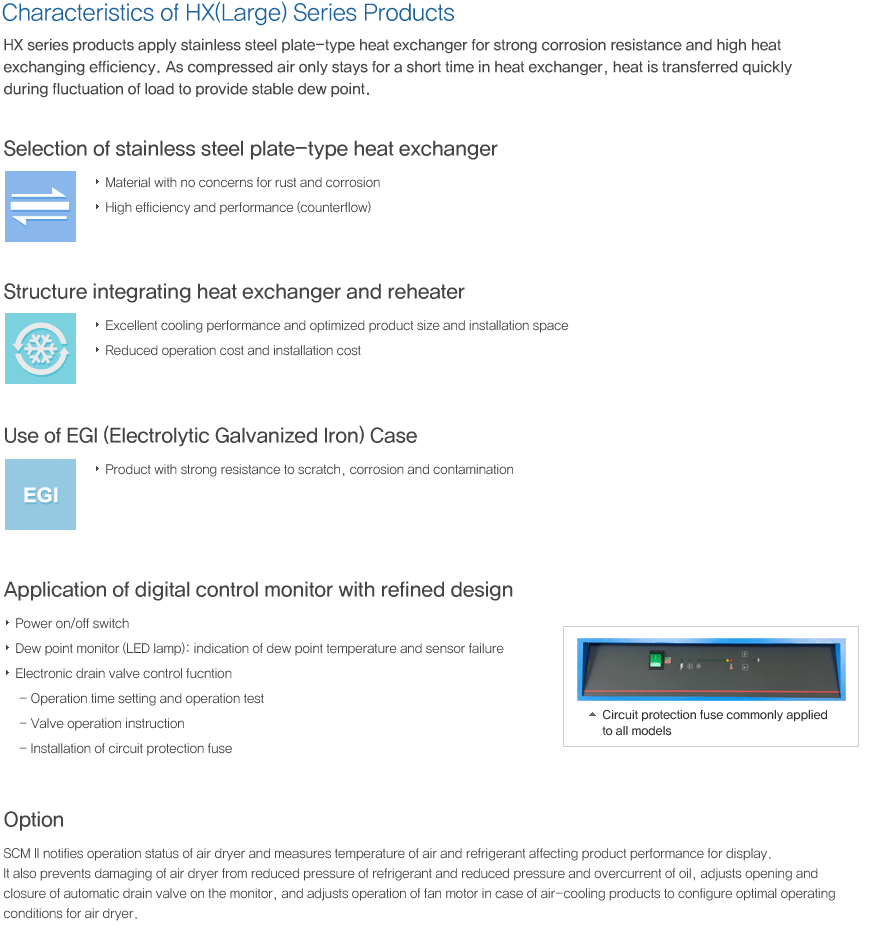

냉동식 에어드라이어 - HX SERIES

Model Flow
Capacity
(N㎥/min)
Power
consumption
(kW)
Ambient
Temp
Range
Inlet
Temp
Range
Electric
Outlet
Refrigerant Inlet/Outlet Dimension Weight
50Hz 60Hz 50Hz 60Hz V/Ph PT LxWxH(mm) kg
HX2000K 60.00 66.54 9.50 10.60 4~43 4~49 380V
440V/
3ph
R-407C(50Hz)

R-22C(60Hz)
6" 1800x1050x1628 1000
HX2500K 75.00 83.17 10.30 13.00 6" 1800x1050x1628 1050
HX3000K 90.10 99.80 11.80 14.50 6" 1800x1050x1628 1100
HX4000K 120 133.08 13.60 17.70 8" 2320x1500x2850 2000
HX5000K 150.10 166.35 18.50 24.40 8" 2320x1500x2850 2300
HX6000K 180.30 199.61 22.70 30.50 8" 2320x1500x2850 2500
  • Flow capacity is based on conditions :
    - 50Hz : Inlet temp 35℃, Ambient temp 25℃, Inlet pressure : 6.9barG, Humidity : 100%
    - 60Hz : Inlet temp 38℃, Ambient temp 38℃, Inlet pressure : 6.9barG, Humidity : 100%

Inlet Pressure(barG) 4 5 6 7 8 9 10 11 12
Correction Factor 0.87 0.92 0.96 1.00 1.03 1.07 1.10 1.12 1.14

Inlet Temperature(℃) 30 35 40 45 49
Correction Factor 1.22 1.00 0.84 0.71 0.60

Ambient Temperature(℃) 20 25 30 35 40 43
Correction Factor 1.06 1.00 0.92 0.85 0.78 0.72
