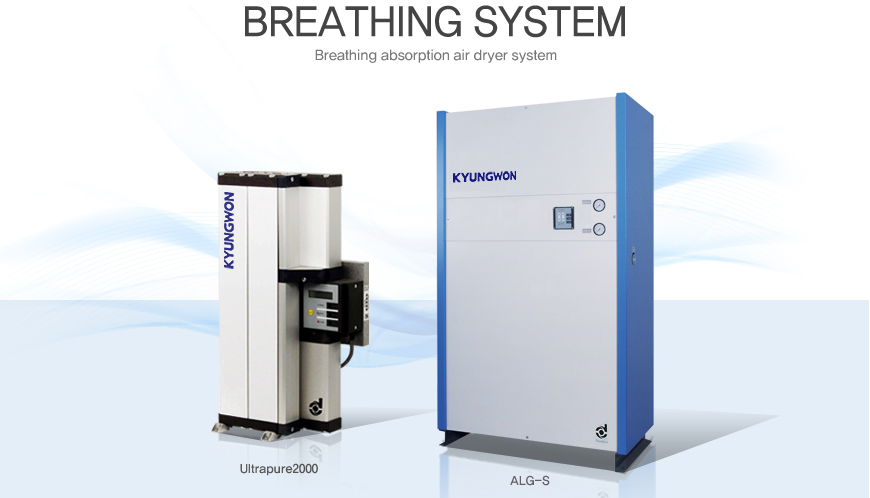

| Ultrapure 2000 |
No. of Users (Persons) |
Treatment Flow(N㎥/min) | Dimension(mm) | Port Diameter of Entrance and Exit |
Weight | |||
|---|---|---|---|---|---|---|---|---|
| Entrance | Exit | Depth | Dimension | Height | kg | |||
| 0005 | 1 person or below | 0.08 | 0.06 | 300 | 189 | 343 | G 1/2" | 12 |
| 0010 | 1 person or below | 0.16 | 0.13 | 300 | 189 | 591 | G 1/2" | 19 |
| 0015 | 1 person or below | 0.25 | 0.19 | 300 | 189 | 583 | G 1/2" | 25 |
| 0025 | 2 person or below | 0.41 | 0.32 | 300 | 189 | 1377 | G 1/2" | 32 |
| 0035 | 1 person or below | 0.58 | 0.46 | 532 | 322 | 665 | G 1" | 44 |
| 0050 | 2 ~ 3 | 0.83 | 0.65 | 532 | 322 | 920 | G 1" | 58 |
| 0065 | 3 ~ 4 | 1.08 | 0.85 | 532 | 322 | 1170 | G 1" | 73 |
| 0080 | 4 ~ 5 | 1.33 | 1.05 | 532 | 322 | 1420 | G 1" | 87 |
| 0100 | 6 ~ 7 | 1.66 | 1.31 | 532 | 322 | 1670 | G 1" | 105 |
- Treatment flow is based on 7bag(g) and entrance temperature of 35°C.
| ALG | No. of Users (Persons) |
Treatment Flow(N㎥/min) | Dimension(mm) | Port Diameter of Entrance and Exit |
Weight | |||
|---|---|---|---|---|---|---|---|---|
| Entrance | Exit | Depth | Dimension | Height | kg | |||
| 80S | 4 ~ 5 | 1.33 | 1.08 | 940 | 460 | 1610 | G 3/4" | 199 |
| 100S | 6 ~ 7 | 1.66 | 1.36 | 940 | 460 | 1610 | G 1" | 240 |
| 150S | 8 ~ 9 | 2.50 | 2.03 | 1140 | 680 | 1980 | G 1" | 288 |
| 225S | 10 ~ 12 | 3.75 | 3.05 | 1140 | 680 | 1980 | G 1 1/2" | 420 |
| 300S | 15 ~ 18 | 5.00 | 4.08 | 1580 | 770 | 2190 | G 1 1/2" | 530 |
| 375S | 20 ~ 24 | 6.25 | 5.10 | 1580 | 770 | 2190 | G 1 1/2" | 795 |
- Treatment flow is based on 7bar(g) and entrance temperature of 35°C.
- Dryer weight includes absorbant.
