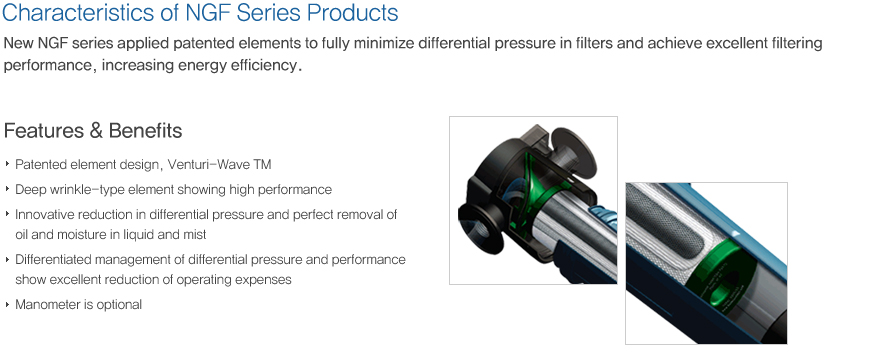

| Element Grade | S | P/PD | H | U | C |
|---|---|---|---|---|---|
| Size of Residual Particle (ISO 12500-3) | 3.0㎛ | 1.0㎛ | 0.01㎛ | 0.01㎛ | 0.01㎛ |
| Solid Particle Removal Efficiency (ISO 12500-3) | - | 99.999+% | 99.999+% | 99.999+% | 99.999+% |
| Oil Removal Efficiency (ISO 12500-1) | 50% | 80% | 99.9+% | 99.99+% | - |
| Residual Oil (ISO 12500-2) | 5.0mgf㎥ | 2.0mgf㎥ | ＜0.01mgf㎥ | ＜0.001mgf㎥ | ＜0.004mgf㎥ |
- ISO 12500 : as an international standard that regulates the method for compressed air filter test and measurement, it regulates tests on oil, oil vapor and solid particle in filters.
1) ISO 12500-1 : Oil (oil removal performance test)
2) ISO 12500-2 : Oil Vapor (oil vapor removal performance test)
3) ISO 12500-3 : Particle (solid particle removal performance test)
| Model | Capacity | Port Diameter | Dimension(mm) | Weight | |
|---|---|---|---|---|---|
| N㎥/min | PT | W | H | kg | |
| S/P/H/U/C70, P70D | 1.98 | 1/2＂ | 114 | 260 | 0.9 |
| S/P/H/U/C150, P150D | 4.25 | 3/4＂ | 132 | 271 | 1.4 |
| S/P/H/U/C200, P200D | 5.66 | 1＂ | 132 | 335 | 1.6 |
| S/P/H/U/C300, P300D | 8.49 | 1 1/2＂ | 200 | 346 | 3.8 |
| S/P/H/U/C500, P500D | 14.14 | 2＂ | 200 | 575 | 5.3 |
| S/P/H/U/C800, P800D | 22.65 | 3＂ | 231 | 852 | 8.5 |
| S/P/H/U/C1100, P1100D | 31.15 | 3＂ | 231 | 1034 | 12.6 |
| S/P/H/U/C1600, P1600D | 45.30 | 3＂ | 231 | 1302 | 18.7 |
- P70D ~ P1600D are exclusive absorption filters for rear end, and directions of Inlet and exit are opposite from other models.
- Drain Port Size : 1/4＂
| Inlet Pressure(bar) | 2.0 | 2.9 | 3.9 | 4.9 | 5.9 | 6.9 | 7.8 | 8.8 | 9.8 | 10.8 | 11.8 | 12.7 | 13.7 | 14.7 | 15.7 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Correction Factor | 0.40 | 0.50 | 0.62 | 0.75 | 0.87 | 1.00 | 1.11 | 1.22 | 1.34 | 1.47 | 1.58 | 1.71 | 1.83 | 1.95 | 2.07 |
| Element Grade | Filter Description | Installation Position |
|---|---|---|
| S | Separator / filter | 1. Rear end of after cooler 2. When after cooler or separator is not installed |
| P/PD | Filtration of general impurities / absorption type exclusive for rear end |
1. Front end of high efficiency oil removal filter 2. Rear end of separator / filter 3. Rear end of absorption dryer 4. Front end of freezing dryer |
| H | Oil removal filter | 1. Front end of absoprtion type dryer 2. Rear end of freezing dryer 3. When separator / filter is installed in the front end |
| U | High efficiency oil removal filter | 1. Front end of absorption dryer 2. Front end of membrane dryer 3. Rear end of freezing dryer |
| C | Filter for removal of oil vapor and smell | 1. Rear end of oil removal filter 2. Rear end of high efficiency oil removal filter |
- When differential pressure exceeds 0.3bar, element needs to be replaced. Replacement of element is determined as earlier time between regular replacement period of 1 year and when differential pressure meter indicates red color
- However in case of C Grade, the lifetime of element is expired at 1,000 hours under rated conditions or when an odor is detected at the filter bottom.
