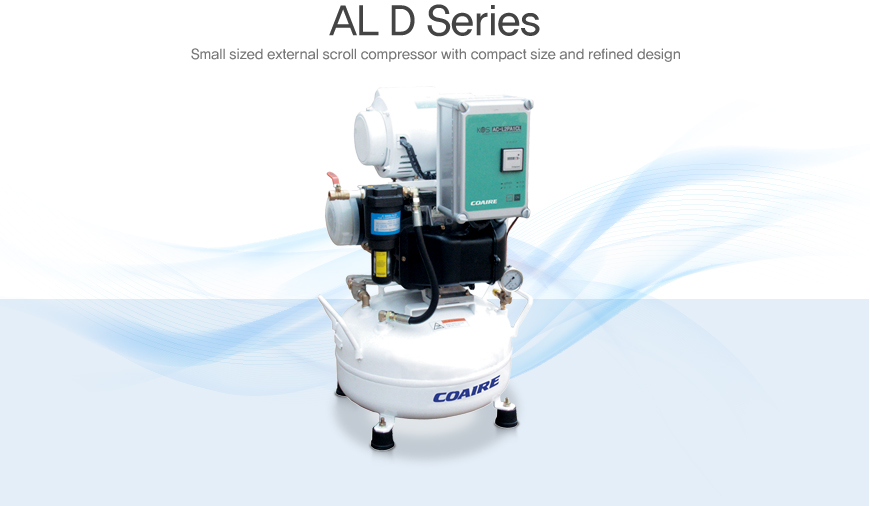

| Compressor Type |
Max.Working Pressure | Capacity | Motor Power | Tank Volume | Filteration | Dimension(LxWxH) | Air Outlet | Weight | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| kgf/㎠G | psig | LPM | CFM | kW | HP | ℓ | ㎛ | mm | A(B) | kg | |
| AL3D | 8.0 | 113.7 | 271 | 9.6 | 2.2 | 3 | 38 | 5 | 645x670x960 | 15(1/2) | 90 |
| AL5D | 8.0 | 113.7 | 416 | 14.7 | 3.7 | 5 | 38 | 5 | 645x670x960 | 15(1/2) | 100 |
- Specifications are subject to change without prior notice due to remodeling of products, etc.
