| Model | Flow Capacity |
Power Consumption |
Ambient Temp Range |
Inlet Temp Range |
Electric Outlet |
Refrigerant | Inlet Outlet |
Dimension | Weight |
|---|---|---|---|---|---|---|---|---|---|
| N㎥/min | kW | ℃ | ℃ | V/ph | PT | LxWxH(mm) | kg | ||

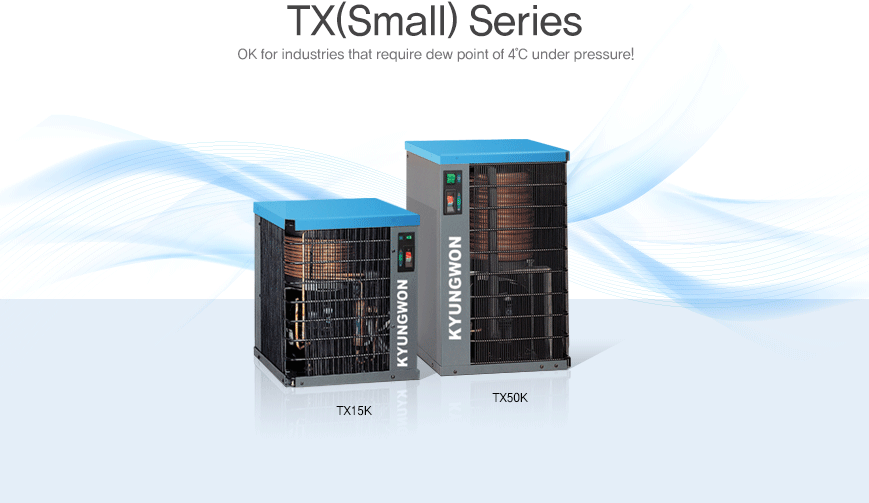

| TX15K | 0.50 | 0.24 | 2~43 | 4~60 | 220V/1ph | R-134a | 3/8＂ | 320x320x382 | 20 |
| TX25K | 1.00 | 0.34 | 3/4＂ | 394x368x568 | 32 | ||||
| TX35K | 1.33 | 0.42 | 3/4＂ | 394x368x568 | 32 | ||||
| TX50K | 1.67 | 0.58 | 3/4＂ | 500x500x568 | 44 |
- Flow capacity is based on conditions:
50Hz : inlet temp 42°C, Ambient temp 35°C, inlet pressure 6.9barG, Humidity 100%. - Please contact our company if power specification differs from the above standard
| Inlet Pressure(barG) | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
|---|---|---|---|---|---|---|---|---|---|
| Correction Factor | 0.82 | 0.88 | 0.95 | 1.00 | 1.05 | 1.09 | 1.13 | 1.16 | 1.18 |
| Inlet Temperature(℃) | 30 | 35 | 40 | 42 | 45 | 50 | 55 | 60 |
|---|---|---|---|---|---|---|---|---|
| Correction Factor | 1.72 | 1.36 | 1.08 | 1.00 | 0.89 | 0.74 | 0.62 | 0.52 |
| Ambient Temperature(℃) | 20 | 25 | 30 | 35 | 40 | 45 | 50 |
|---|---|---|---|---|---|---|---|
| Correction Factor | 1.20 | 1.13 | 1.07 | 1.00 | 0.94 | 0.85 | 0.74 |
